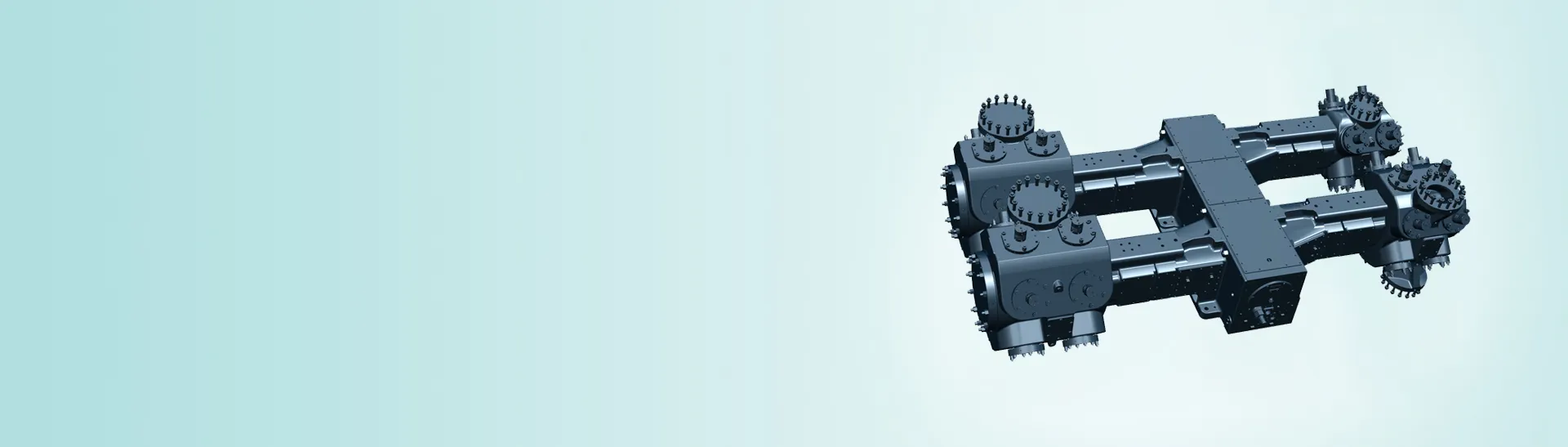

High-speed Reciprocating Compressor

High-speed Reciprocating Compressor

Separated high-speed reciprocating compressor platform for natural gas gathering, processing and storage duties. The ZXH Series targets gas-field applications requiring relatively higher operating speed, flexible frame selection and packaged engineering support, with ISO 13631 compliance and API 618 optional.
Get a Quote Download Product Catalog
Overview
Advantage
Specification
Resource

ZXH Series Separable High-Speed Reciprocating Compressor Overview

(Compliant with ISO 13631; API 618 available)


Application Scenarios:

Designed for natural gas gathering, processing, and storage applications, including CNG and LNG services.


Frame Types:

  • ZXH-H – Medium Oilfield High Speed Recip.

  • ZXH-I – Heavy Oilfield High Speed Recip.

  • ZXH-J – Super Heavy Oilfield High Speed Recip.


Power: 405 – 6,500 kW

Speed: 600 – 1,800 RPM

Rated Pressure: Outlet pressure slightly above atmospheric pressure——55MPa

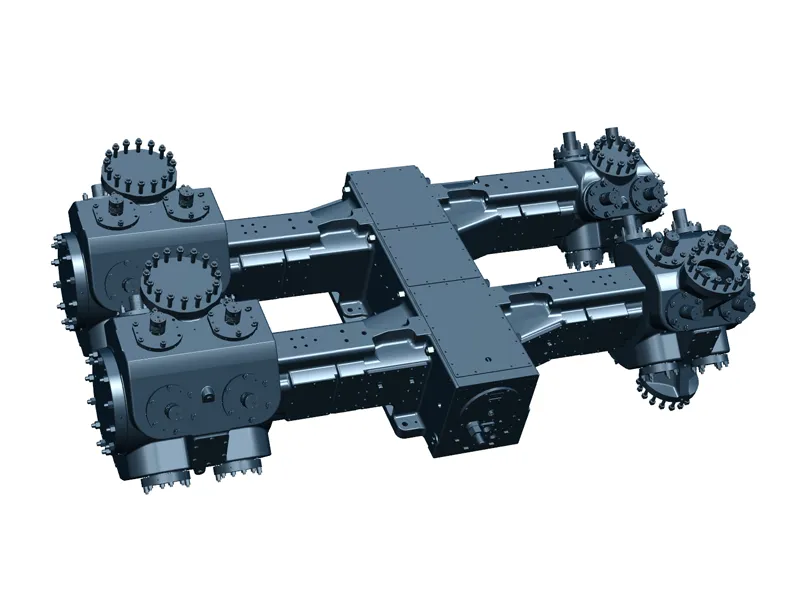

ZXH Series (ISO 13631 High-speed Service) Reciprocating Compressor Overview

Advantages

  • ISO 13631-based high-speed separated design, with API 618 optional

  • Designed for natural gas gathering, processing, storage and LNG-related duties

  • Higher-speed operating window from 600 to 1,800 RPM

  • Three frame families ZXH-H / ZXH-I / ZXH-J for different MACCRL and Cyl. bore ranges

  • Cyl. bore range from 120 to 710 mm and max power up to 6,500 kW


Specification

Technical Parameters of High-speed Reciprocating Compressor
ModelStroke (mm)ThrowsMax. Power (kW)MACCRL (kN)Cyl. bore range (mm)
ZXH-H127 / 152 / 1782,4 or 63,310200120–520
ZXH-I127 / 152 / 1782,4 or 65,370265120–710
ZXH-J152 / 1782,4 or 66,500375120–710


For any inquiries or to get in touch with our team, please click Contact Us.

Resource

Product Catalog
Seeking Reliable Compressor Solutions for Your Rigorous Operating Conditions?
Contact QualRotate for Process Gas Compressor Solutions
Contact us
Related Compressor

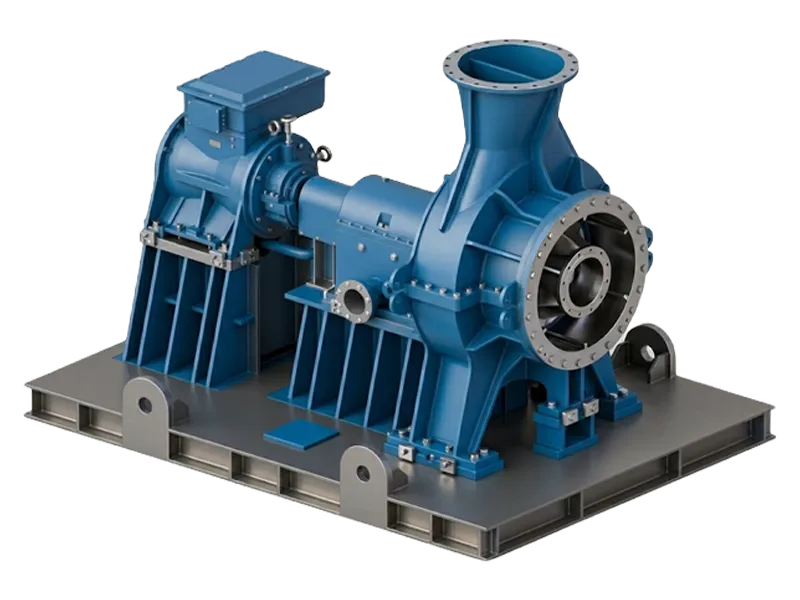

Single-Stage Overhung Compressor
