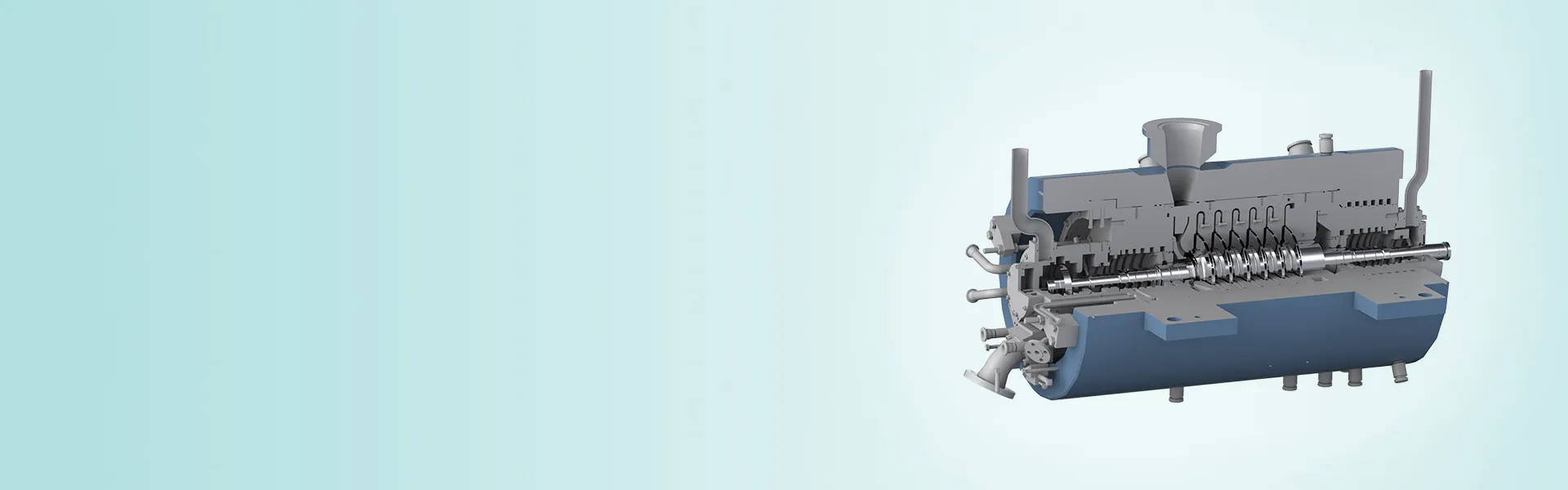

Vertically Split Casing

Vertically Split Casing Centrifugal Compressor

CP Series (High-Ultrahigh Pressure)
Single-shaft centrifugal compressor with vertically split casing, compact and easy to maintain,
providing precise rotor performance for industrial process applications.
Get a Quote Download Product Catalog
Overview
Advantage
Specification
Resource

CP Series (High-Ultrahigh Pressure) Centrifugal Compressor Overview

Application Scenarios:

  • Onshore/Offshore Oil and Gas

  • Petrochemicals

  • Methanol

  • Natural Gas Storage and Transportation

  • Refining

  • Fertilizers

  • FPSO

Typical Model: CP306-A, suitable for re-injection gas processes on offshore natural gas platforms

Outlet Pressure: 236 barG

Flow Rate: 600 m³/h

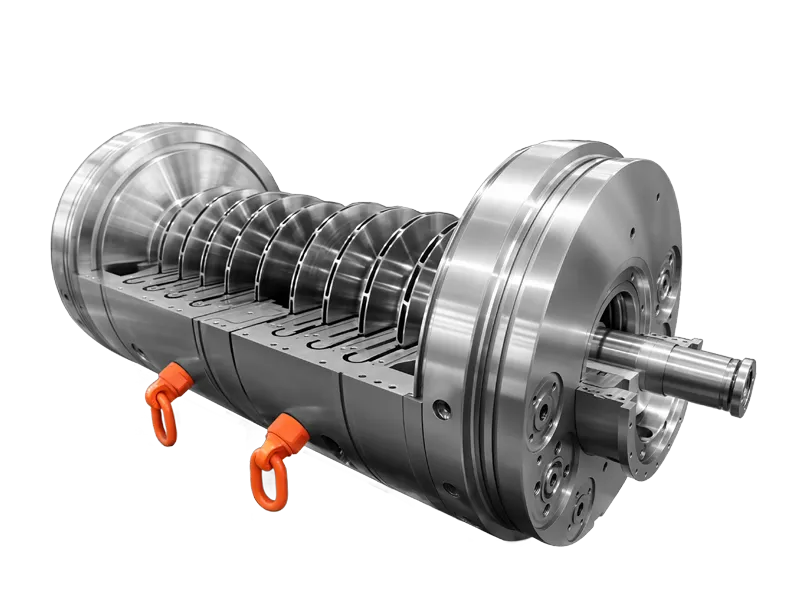

cp series high ultrahigh pressure centrifugal compressor overview

Advantages

  • Supports multiple sealing systems for versatile applications

  • Maintains high efficiency at part-load conditions

  • Handles light gases and high-pressure processes

  • Flexible multi-stage design with up to ten impellers

  • Packaged-unit concept simplifies transport and minimizes on-site installation work

Specification

Technical Parameters of CP Series (High-Ultrahigh Pressure) Centrifugal Compressor
Compressor TypeImpeller Diameter (mm)Maximum Flow Rate (m3/h)Pressure Limit (barG)Design Rotational Speed (RPM)
Lower LimitUpper Limit
CP30XUp to 30010600Up to 4501111121000
CP40XUp to 40018900Up to 400833320000
CP50XUp to 50029600Up to 320666615000
CP60XUp to 60042600Up to 250555512000
CP70XUp to 70058000Up to 200476010000
CP80XUp to 80075800Up to 20041678570
CP90XUp to 90095900Up to 20037007500
CP100XUp to 1000118400Up to 10033336666
CP110XUp to 1100143000Up to 5030306000


For any inquiries or to get in touch with our team, please click Contact Us.

Resource

Product Catalog
